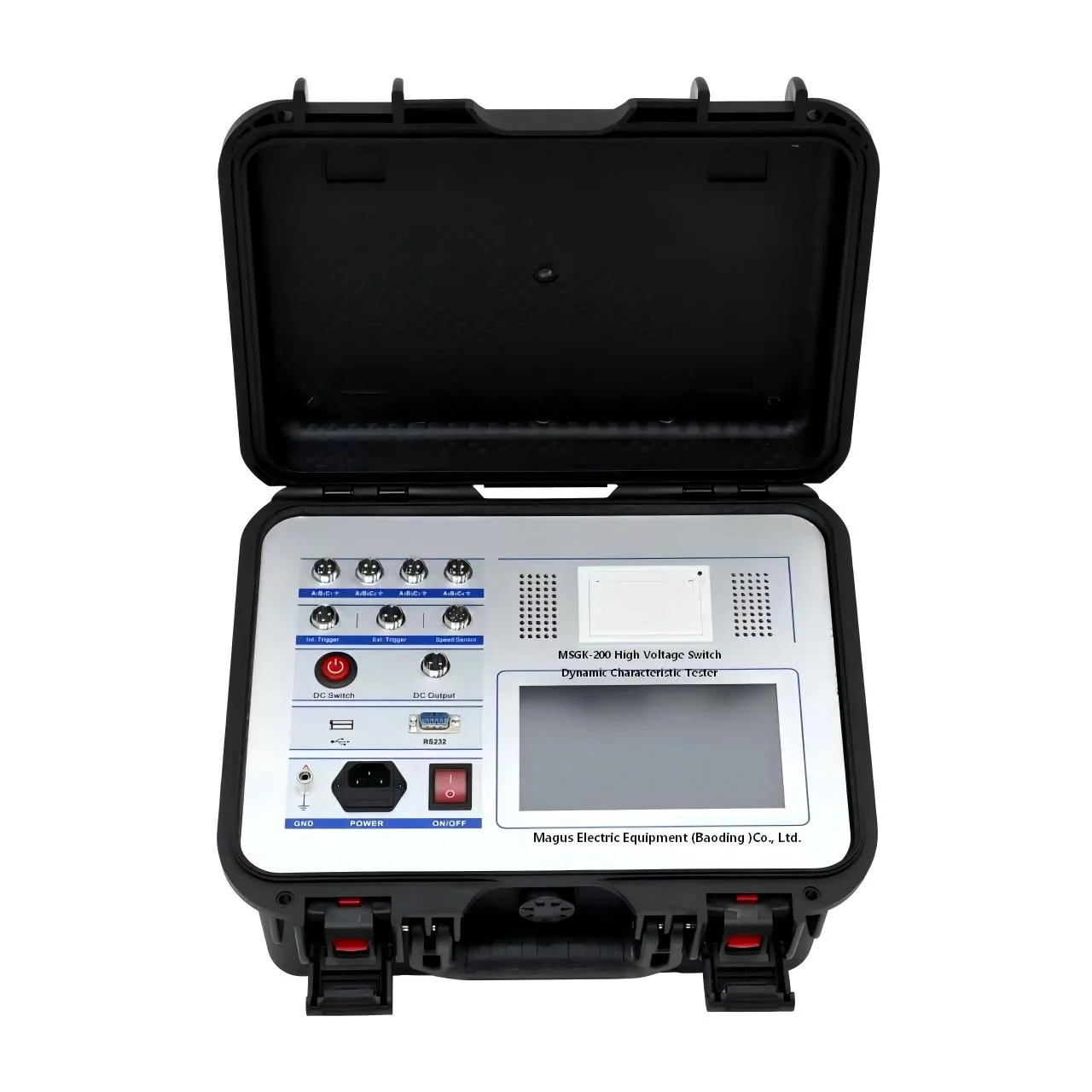

MSGK‑200 12‑channel circuit breaker mechanical characteristic tester, test time, bounce, speed, travel for vacuum, SF6, oil circuit breaker. Built‑in DC20‑270V power, thermal printer.

Product Overview

Design Standard & Application Scope

  (Reference standards: GB 1984-2003, DL/T 846.3-2004; applicable to SF6, GIS, vacuum, oil, and locomotive-type circuit breakers; 500kV substation anti-interference capability)）

Key Features

12‑Channel Fracture Measurement

  12 metal contact fractures:6 main +6 auxiliary,one‑shot test get time bounce count ,speed,coil current & resistance

7‑Inch Color LCD, Multilingual Operation

  sunlight readable, Chinese & English, waveform & data same‑screen display

Integrated Adjustable DC Operating Power

  DC20‑270V adjustable, max 20A short‑time, short‑circuit protection 1ms cutoff；dual‑circuit power‑supply design

Flexible Speed Sensor Compatibility

  linear sensor 50‑1000mm；345° rotary angle sensor；360° dead‑angle‑free mounting

Data Storage & Export

  store 100 groups test data；USB disk export, RS232 online communication；built‑in thermal printer for on‑site print

Main Technical Parameters

1. Time measurement:

12 natural switching (closing) time

The opening (closing) phase is not at the same time

The difference between different periods of switching (closing)

Closing (opening) Bouncing time (number of bounces)

Internal trigger test range: 1ms ~ 10000ms, resolution: 0.01ms,

External trigger test range: 1ms ~ 10000ms,

Resolution within 999ms: 0.01ms,1000-9999ms: 0.1ms, and over 10000ms: 1ms.

Accuracy within 200ms: 0.05%± 0.1ms

2. velocity measurement : instant separating (instant closing) velocity

Appointed time slot( stroke segment or angle segment) average

velocity

3. velocity measurement range: 0.1mm sensor 0.01～20.00m/s，

                          345°angle sensor 1 cycle/ 0.01°

4. Travel measurement: Travel of moving contact (travel)

Contact stroke (open distance)

Over travel

Overshoot or rebound stroke

5. Measuring range: linear sensor: 50mm, measuring range: 0-50mm, resolution :0.1mm.

Optional 100-1000mm linear sensor of any length.

Encoder: 345° Rotate sensor, measurement

range: 0-1000mm, resolution :0.1^о.

6. Current resistance range: the maximum current 20 A, resolution: 0.01 A, 1000 Ω resistance, resolution: 0.01 Ω.

7. Instrument power supply: AC 220V ± 10%; 50 hz plus or minus 10%

8. Dc power output: continuously adjustable DC20 ~ 270V, DC220V≤20A (short time), Power: 4400W.

9. External trigger voltage: AC/DC10-300V, current ≤120A

10. disconnecting switch measurement range

(1) Voltage output: DC20～270V(adjustable)

(2) Current output time: 0.01~10 s (settable)

(3) Fracture signal maximum acquisition time: 10s

(4) Measurable fracture closing, separation time, three-phase a synchronism , bounce time and frequency .

11. mainframe volume :385*320*205mm

12. operating environment: -20℃~+50℃

13. relative humidity: ≤90%
