Product Overview

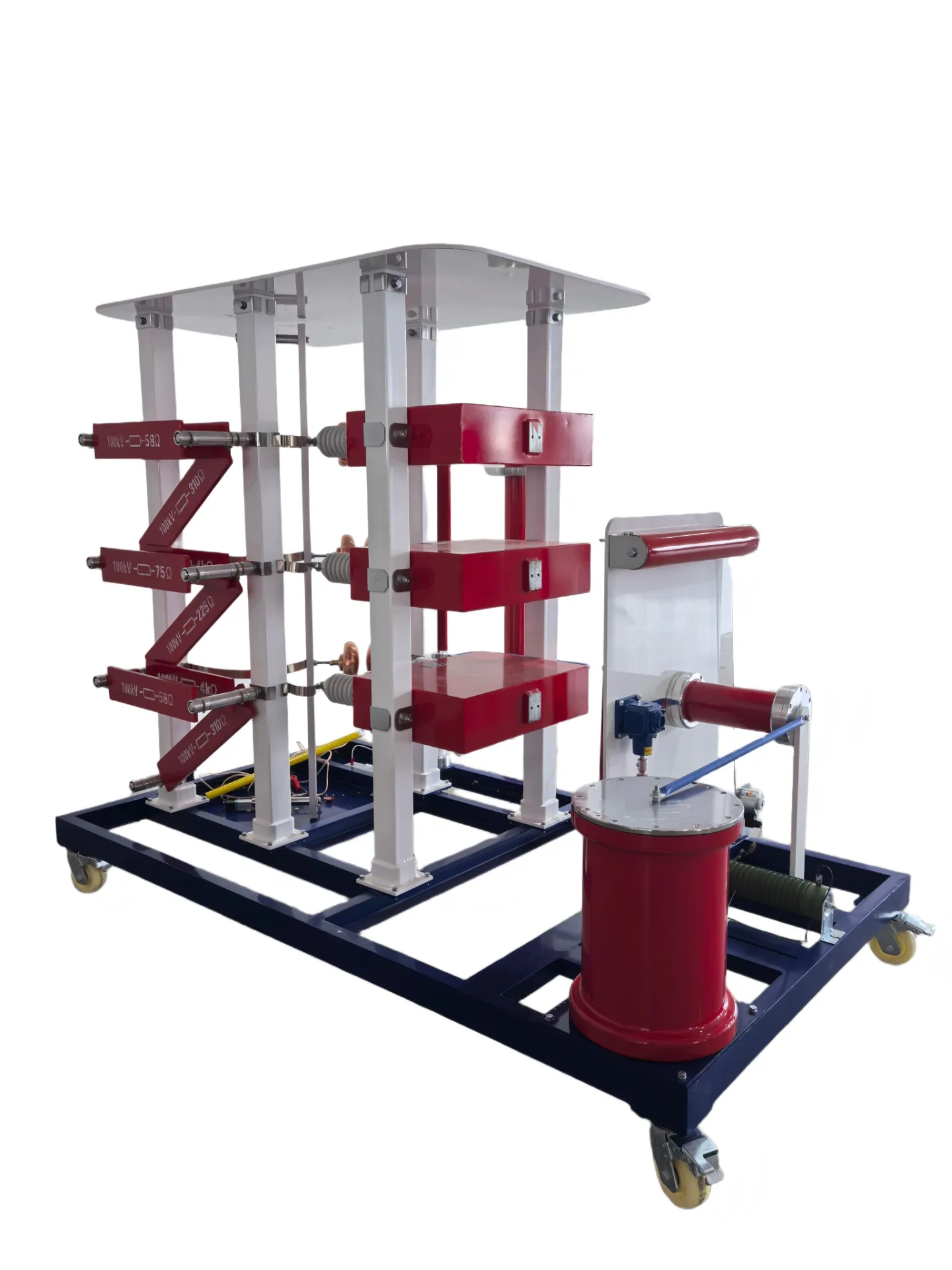

The 300kV / 15kJ impulse voltage generator complete set is designed for standard lightning impulse voltage full-wave tests** on power transformers, instrument transformers, reactors, lightning rods, switches, bushings, insulators, and other test objects with voltage levels of 35kV and below.

This impulse voltage generator produces standard lightning impulse voltage full waves that meet IEC and GB311-97 national standard requirements. It is suitable for high-voltage test laboratories, power research institutes, transformer factories, and switchgear manufacturers.

Usage Conditions

– Altitude: ≤ 1000m

– Ambient temperature: -25°C to +45°C

– Relative humidity: ≤ 90% (at 20°C)

– Maximum daily temperature difference: ≤ 25°C

– Earthquake resistance: ≤ 8 magnitude

– Installation location: Indoor

– Power supply voltage waveform: Actual sine wave

– Waveform distortion rate: < 3%

– Reliable grounding point provided, grounding resistance: < 0.5Ω

Follow the Standards

– GB7449 Test Guidelines for Lightning Impulse and Switching Impulse of Power Transformers and Reactors

– GB1094.3-03 Power Transformers – Part III: Insulation Level and Insulation Test

– GB/T 311.1-1997 Insulation and Coordination of High Voltage Transmission and Transformation Equipment

– GB/T 16927.1-1997 High Voltage Testing Techniques – Part 1: General Test Requirements

– GB/T 16927.2-1997 High Voltage Testing Techniques – Part II: Measurement Systems

– GB/T 16896.1 Digital Recorder for High Voltage Impulse Testing

– DL/T 848.5 General Technical Conditions for High Voltage Testing Apparatus – Part 5: Impulse Voltage Generator

Rated Parameter Values

– Rated nominal voltage: ±300kV

– Rated voltage: ±100kV

– Rated energy: 15kJ

– Total impulse capacitance: 0.333μF

– Levels: 3

– Rated capacitance: 1μF

The following waveforms can be generated when the load capacitance is 300–5000pF:

– 1.2 ± 30% / 50 ± 20% μs lightning impulse voltage full wave, voltage efficiency ≥ 95% (no load)

– Impulse voltage waveform parameters fully meet IEC and GB311-97 national standard requirements

– Synchronization range: Voltage range is 10% to 100% of rated voltage, positive and negative polarity synchronization range not less than 20%

– Ignition range: 10% to 100%

– Synchronous discharge runaway rate: < 2%

– Minimum output voltage: ≤ 10μm

– Charging voltage instability: ≤ ±1.0%

– Duration of use: Above 70% of rated voltage, continuous operation with one charge-discharge cycle every 90 seconds; below 70% of rated voltage, continuous operation with one charge-discharge cycle every 45 seconds
